ID Number: 036

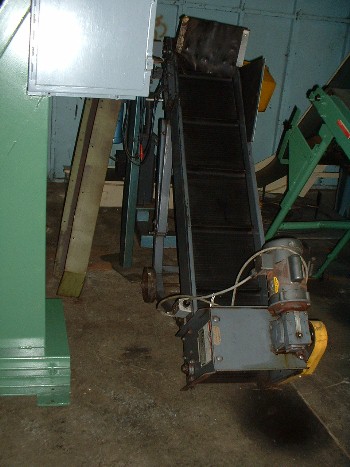

Model 304 Parts Conveyor
Model Description:
The rugged Model 304 Titan Parts Conveyor is designed to handle many various types of products. The
odel 304 allows you to convey and elevate product from one machine to another. The Model 304 is offe
ed in seven belt widths with standard units up to twelve feet long. The standard frame design incorp
rates 3-1/2" high side rails and an enclosed bottom pan for the belt return. The adjustable undercar
iage allows for a variety of adjustments at both the in feed and discharge. Options such as in feed
opper, adjustable fixed supports add to the flexibility of this unit. The adjustable undercarriage f
atures eight inch diameter steel wheels for easy handling over rough surfaces.
Model Specifications:
Bearings: Grease Sealed
Belt: 2 Ply Black Neoprene With 1-1/2" High Cleats on 12" Centers
Belt Speed: 60 F.P.M.
Drive: 1/2 H.P. 115 1Phase
Frame: 6-1/2" Deep Formed 12 Gauge
Belt: 12 “ wide
Paint: One Coat Industrial Enamel
Pulleys: 4" Diameter Crown Face Rubber Lagged Drive 4" Diameter Crown Face Take-Up
Speed: 60 F.P.M.
Supports: Adjustable Undercarriage With 8" Diameter Steel Wheels
Belt is cracked needs new belt!
