Reference: 4717

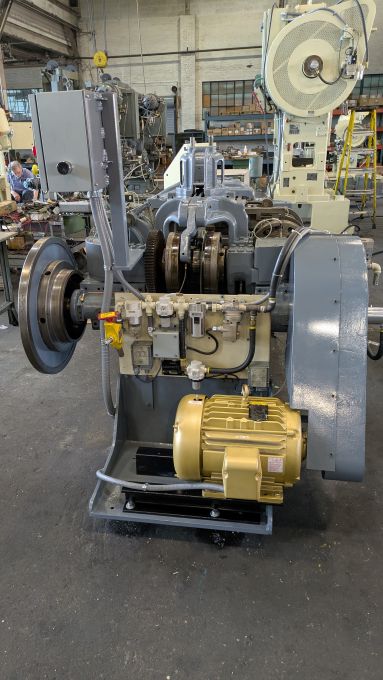

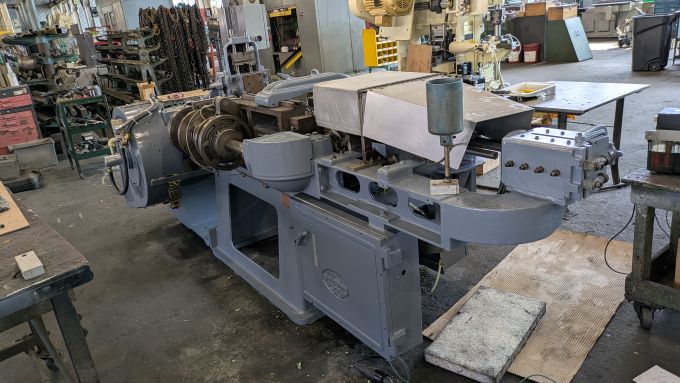

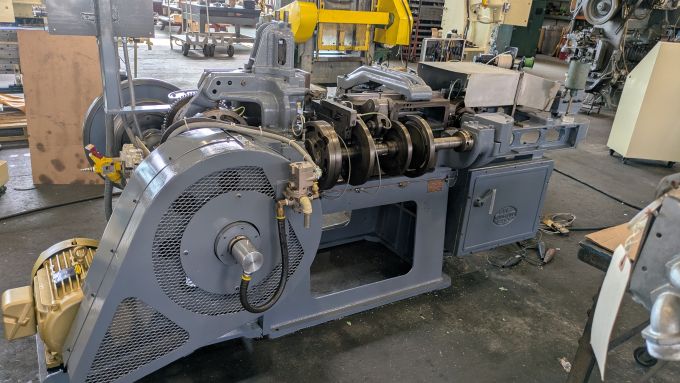

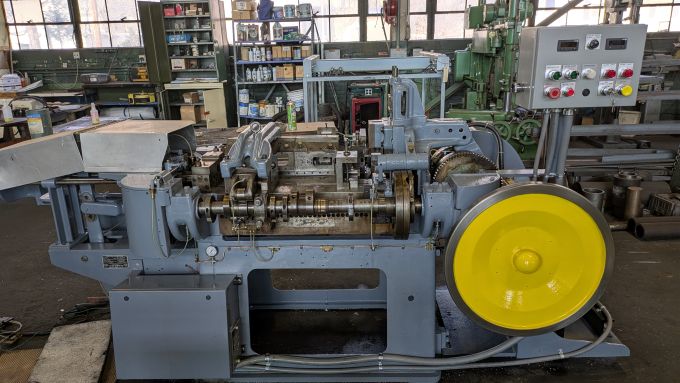

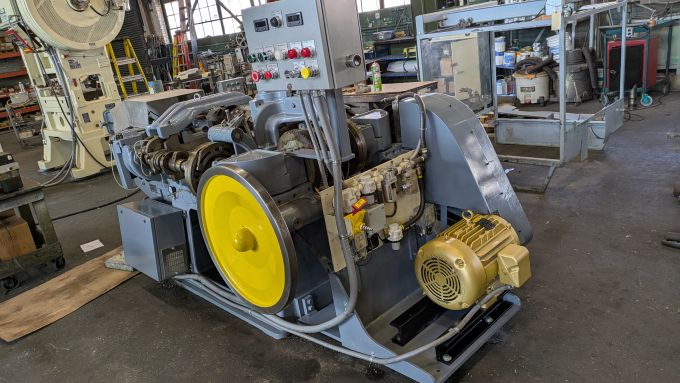

BAIRD MULTISLIDE
Model 33
Serial #6033
Symmetrical
Refurbished
3/4" Stroke
4" Max Shut Height
1/4" Ram Adjustment
12-1/2" Max Feed Length
2-1/2" Max Width
3/32" Max Thickness
40-160 SPM
Equipped with the following items attached:- refurbished as needed
Standard split cams
1 Die Head and Front Mounted Cam with 14" and 8-1/2" Back Plates - Die head is heavy duty
4 Heavy Duty Slides and Cams
Stripper Mechanism with Cam
Rear Cut Off and Cam
Stock Straightener
Stock Check
Feed Block and Feed Operating Assembly
Feed Gripper
Rear Auxiliary slide
Minster Air clutch and brake
new motor pully and belts
New AC inverter for Variable speed
New Air and oil systems
Options
New PLC controls
OAD: 56" x 52" x 137"
Weight: 6700 pounds
